Summary application note for MaxLine Niagara4 driver
For detailed information, free of charge trial driver, and prices, please use the Enquiry Form
Johnson N2 serial driver
Requirements:- JACE or OEM equivalent from Honeywell, Distech, or another supplier.
- Serial communication RS485 Port. (Required “serial” feature in the license). Multiple external Tridium RS485 ports can be added to a JACE and all connected devices are covered by a single unlock code (license) for the MaxLine N2 driver.
- The limitation on the maximum size of an N2 Network in a single Niagara N4 station is based on the JACE resource count, and the total bandwidth of the serial connection(s). The system must have at least a reserve of 30% CPU usage.
Supported devices:
- AHU /li
- DX9100
- FX N2 Open
- TC9100
- TEC
- UNT
- VAV
- VND
- VMA 1400 Series
- VMA 1410
- VMA 1420
- XT9100
- AS-MIG-201-0 (Revision X) Integrator 4073 v6.00
- AS-UNT 111-1 (Revision F)
- DX9100
- VAV-111-1
- VND
- DC9100
- DO9100
- DR9100
- XTM-105

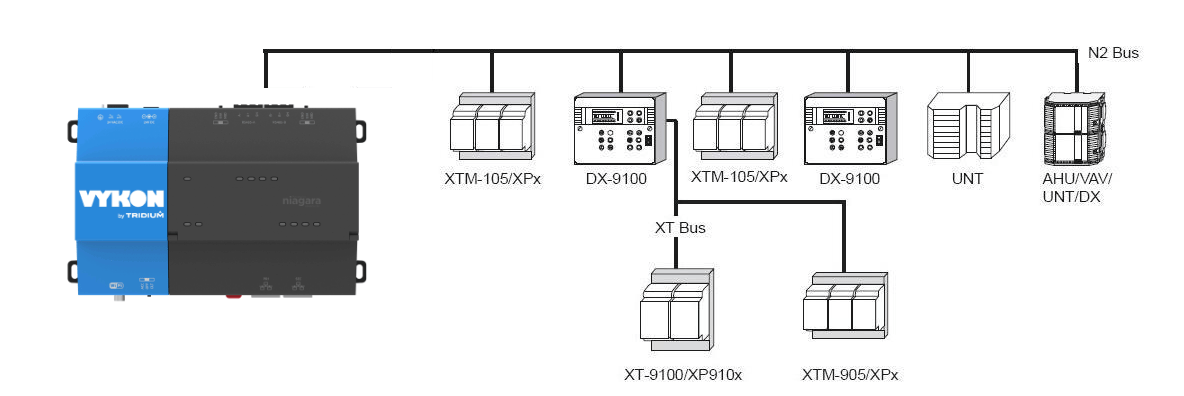

Connection diagram
